Jiaxing Huiya Pipeline Technology Co., Ltd
भुगतान प्रकार:L/C,T/T,D/P,D/A,Paypal
इंकोटर्म:FOB,CFR,CIF
Min. आदेश:1 Piece/Pieces
परिवहन:Ocean,Land,Air
$0.1-1 /Piece/Pieces
ब्रांड: HY या Oem
Warranty Service: 3 Years
Place Of Origin: China
सीलिंग फॉर्म: स्व सीलिंग
Material: CPVC
आवेदन: Industrial Usage
मानक: DIN
Medium Temperature: Normal Temperature
Power: Hydraulic
परिवहन: Ocean,Land,Air
भुगतान प्रकार: L/C,T/T,D/P,D/A,Paypal
इंकोटर्म: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |

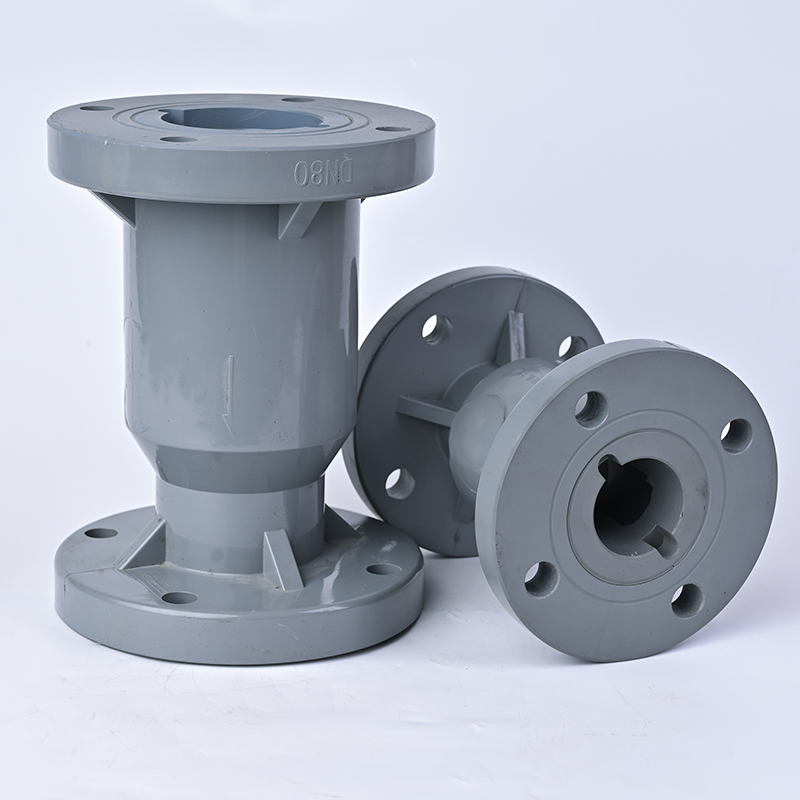

| Key Word: | Durable CPVC Flanged Check Valve Solution | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | CPVC(PVC-C) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN10(1.0Mpa) | |||
| Working temperature: | Normal temperature | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.0 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
| CPVC Ball Check Valve-Flanged Type Parts&Material | ||
| No. | Parts | Materials |
| 1 | Body | CPVC |
| 2 | Ball | CPVC |
| 3 | plastic gasket | CPVC |
| 4 | Seal | PTFE,EPDM,FPM |
| 5 | plastic gasket | CPVC |
| 6 | O ring | PTFE,EPDM,FPM DN125-150 Used Only |
| 7 | Inner plug | CPVC |
| CPVC DIN Ball Check Valve-Flanged Type Dimensions Table | ||||||||
| DN | D1 (mm) |
D(mm) | L(mm) | h(mm) | n | φ(mm) | (Mpa) working pressure |
(Mpa) Minimum back pressure |
| DIN | HG/DIN | HG/DIN | ||||||
| 15 | 95 | 65 | 100 | 15 | 4 | 14 | 1.0 | 0.1 |
| 20 | 105 | 75 | 120 | 17 | 4 | 14 | 1.0 | 0.1 |
| 25 | 115 | 85 | 140 | 17 | 4 | 14 | 1.0 | 0.1 |
| 32 | 135 | 100 | 160 | 17 | 4 | 18 | 1.0 | 0.1 |
| 40 | 145 | 110 | 165 | 17 | 4 | 18 | 1.0 | 0.1 |
| 50 | 160 | 125 | 180 | 20 | 4 | 18 | 1.0 | 0.1 |
| 65 | 180 | 145 | 220 | 22 | 4 | 18 | 0.6 | 0.1 |
| 80 | 195 | 160 | 250 | 25 | 8 | 18 | 0.6 | 0.1 |
| 100 | 215 | 180 | 280 | 25 | 8 | 18 | 0.6 | 0.1 |
| 125 | 245 | 210 | 325 | 30 | 8 | 18 | 0.4 | 0.1 |
| 150 | 280 | 240 | 365 | 30 | 8 | 22 | 0.4 | 0.1 |
| 200 | 335 | 295 | 405 | 35 | 8 | 22 | 0.3 | 0.1 |
| 250 | 400 | 350 | 500 | 38 | 12 | 22 | 0.3 | 0.1 |
| 300 | 455 | 400 | 600 | 40 | 12 | 22 | 0.3 | 0.1 |
| CPVC JIS Ball Check Valve-Flanged Type Dimensions Table | ||||||||
| DN | D1 (mm) |
D(mm) | L(mm) | h(mm) | n | φ(mm) | (Mpa) working pressure |
(Mpa) Minimum back pressure |
| JIS | JIS | JIS | ||||||
| 15 | 95 | 70 | 100 | 15 | 4 | 15 | 1.0 | 0.1 |
| 20 | 105 | 75 | 120 | 17 | 4 | 15 | 1.0 | 0.1 |
| 25 | 115 | 90 | 140 | 17 | 4 | 15 | 1.0 | 0.1 |
| 32 | 135 | 100 | 160 | 17 | 4 | 19 | 1.0 | 0.1 |
| 40 | 145 | 105 | 165 | 17 | 4 | 19 | 1.0 | 0.1 |
| 50 | 160 | 120 | 180 | 20 | 4 | 19 | 1.0 | 0.1 |
| 65 | 180 | 140 | 220 | 22 | 4 | 19 | 0.6 | 0.1 |
| 80 | 195 | 150 | 250 | 25 | 8 | 19 | 0.6 | 0.1 |
| 100 | 215 | 175 | 280 | 25 | 8 | 19 | 0.6 | 0.1 |
| 125 | 245 | 210 | 325 | 30 | 8 | 19 | 0.4 | 0.1 |
| 150 | 280 | 240 | 365 | 30 | 8 | 23 | 0.4 | 0.1 |
| 200 | 335 | 290 | 405 | 35 | 12* | 23 | 0.3 | 0.1 |
| 250 | 400 | 355 | 500 | 38 | 12 | 25 | 0.3 | 0.1 |
| 300 | 455 | 400 | 600 | 40 | 16* | 25 | 0.3 | 0.1 |
| CPVC ANSI Ball Check Valve-Flanged Type Dimensions Table | ||||||||
| DN | D1 (mm) |
D(mm) | L(mm) | h(mm) | n | φ(mm) | (Mpa) working pressure |
(Mpa) Minimum back pressure |
| ANSI | ANSI | ANSI | ||||||
| 15 | 95 | 60 | 100 | 15 | 4 | 16 | 1.0 | 0.1 |
| 20 | 105 | 70 | 120 | 17 | 4 | 16 | 1.0 | 0.1 |
| 25 | 115 | 79 | 140 | 17 | 4 | 16 | 1.0 | 0.1 |
| 32 | 135 | 89 | 160 | 17 | 4 | 16 | 1.0 | 0.1 |
| 40 | 145 | 98 | 165 | 17 | 4 | 16 | 1.0 | 0.1 |
| 50 | 160 | 121 | 180 | 20 | 4 | 19 | 1.0 | 0.1 |
| 65 | 180 | 140 | 220 | 22 | 4 | 19 | 0.6 | 0.1 |
| 80 | 195 | 152 | 250 | 25 | 4* | 19 | 0.6 | 0.1 |
| 100 | 215 | 190 | 280 | 25 | 8 | 19 | 0.6 | 0.1 |
| 125 | 245 | 216 | 325 | 30 | 8 | 22 | 0.4 | 0.1 |
| 150 | 280 | 241 | 365 | 30 | 8 | 22 | 0.4 | 0.1 |
| 200 | 335 | 298 | 405 | 35 | 8 | 22 | 0.3 | 0.1 |
| 250 | 400 | 362 | 500 | 38 | 12 | 26 | 0.3 | 0.1 |
| 300 | 455 | 432 | 600 | 40 | 12 | 26 | 0.3 | 0.1 |
